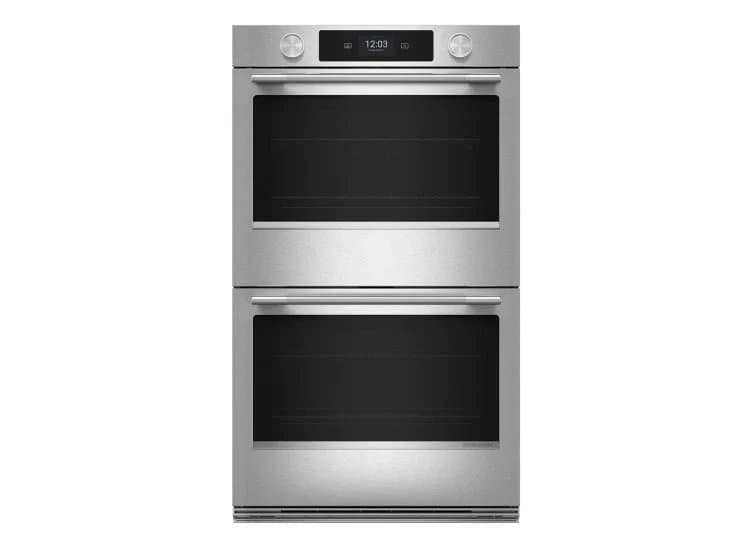

KitchenAid 27" Double Wall Oven Stainless Steel

Name: KitchenAid 27" Double Wall Oven Stainless Steel
Brand: KitchenAid

Retailer	Price	Availability
Best price	$3,198.00	In stock	Buy
	$3,298.00+$100	In stock	Buy
	$3,298.97+$101	In stock	Buy
	$3,299.00+$101	In stock	Buy

What You Need to Know

Precise cabinet cutout dimensions dictate what wall oven you can buy. Double ovens offer maximum cooking flexibility but require substantial vertical cabinet space. Available from $3,198.

Specifications

Dimensions & Weight

Depth: 27.13 Inches
Width: 26.75 Inches
Height: 50.81 Inches
Weight: 271 Lb(s)
Common Size: 27"
Cutout Depth: 24 in
Cutout Width: 25.5 in
Gross Weight: 277 lbs
Cut Out Depth: 24 Inches
Cut Out Width: 25.5 Inches
Cutout Height: 50.25 in
Cut Out Height: 50.25 Inches
Maximum Height: 5"
Minimum Height: 50 13/16"
Package Weight: 286
Wall Oven Size: 27 in.
Wall Oven Width: 27
Oven Window Size: Extra Large
Lower Oven Capacity: 4.3 cu. ft.
Upper Oven Capacity: 4.3 cu. ft.
Depth With Door Open: 46.75 Inches
Depth With Door Open 90: 46 3/4"
Nominal Wall Oven Width: 27 in.
Lower Oven Capacity Cu Ft: 4.3
Lower Oven Interior Depth: 19 Inches
Lower Oven Interior Width: 22 Inches
Total Oven Capacity Cu Ft: 8.6 Cu. Ft.
Upper Oven Capacity Cu Ft: 4.3 Cu. Ft.
Upper Oven Interior Depth: 19 Inches
Upper Oven Interior Width: 22 Inches
Lower Oven Interior Height: 18 Inches
Upper Oven Interior Height: 18 Inches
Cut Out Front To Back Depth: 24 in
Cut Out Left To Right Width: 25.5 in
Depth Closed Excluding Handles: 24 1/2"
Depth Closed Including Handles: 27 1/8"
Depth With Door Open 90 Degrees: 46.75
Lower Single Oven Capacity Cu Ft: 4.3 Cu. Ft.

Power & Energy

Volts: 240
Voltage: 240 Volts
Amperage: 40 Ampere
Energy Star: No
Amperage 240v: 40A
Bake Element Power: 2800W Both
Power Cord Included: No
Bake Element Wattage: 2800
Broil Element Wattage: 4000
Broiler Element Power: 4000W Both
Bake Element Power Btu: 2800 BTU/Watts
Convection Element Power: 3200 Both w
Power On Indicator Light: Yes
Convection Element Wattage: 3200

How Much Does a Wall Ovens Cost to Own?

Wall ovens have moderate energy costs depending on baking frequency. Since they are built into cabinetry, replacement labor is significantly higher than freestanding ranges.

Common Issues with Wall Ovens

Common Failure Modes
Heating elements are the most common mechanical failure, while control boards can succumb to heat exposure, especially after running high-heat self-cleaning cycles. Fans in convection models can also become noisy or fail.

Installation Requirements

Installation Checklist — Installing a wall oven requires lifting a heavy appliance into a wall cavity and hardwiring it to an electrical junction box. Modifications to the cabinetry may be needed if the new unit doesn't match the old cutout perfectly.

Frequently Asked Questions

What should I know before buying the KitchenAid 27" Double Wall Oven Stainless Steel?▼

Precise cabinet cutout dimensions dictate what wall oven you can buy. Double ovens offer maximum cooking flexibility but require substantial vertical cabinet space.

How long does the KitchenAid 27" Double Wall Oven Stainless Steel last?▼

Wall ovens are heavy-duty appliances that typically last a long time. Control boards and heating elements are the most common parts to fail but are replaceable.

Where can I buy the KitchenAid 27" Double Wall Oven Stainless Steel?▼

The KitchenAid 27" Double Wall Oven Stainless Steel is available at abt, ajmadison, pcrichard, homedepot, starting at $3,198.

How much does it cost to own a wall ovens?▼

Wall ovens have moderate energy costs depending on baking frequency. Since they are built into cabinetry, replacement labor is significantly higher than freestanding ranges.
