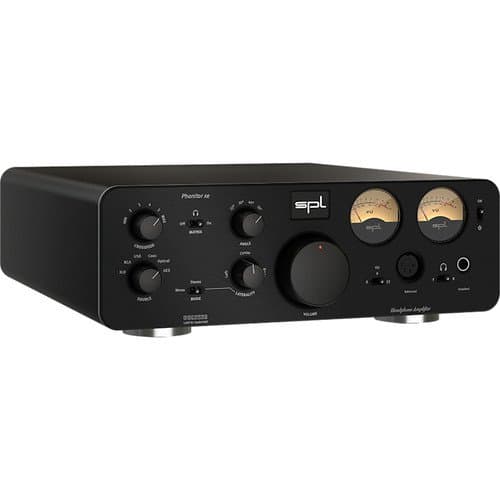

SPL Phonitor xe Headphone Amplifier and DAC (Black)
Model: 18304
from $3,950
Prices updated Mar 27, 2026
Color: Black
3 configurations available
Compare Prices
| Retailer | Price | Availability | |
|---|---|---|---|
| bhphoto | $3,950.00 | Out of stock |
What You Need to Know
The SPL Phonitor xe is a high-performance headphone amplifier and DAC, meticulously engineered to deliver an uncompromised listening experience. Featuring SPL's proprietary VOLTAiR technology with a ±60V rail voltage, it provides exceptional dynamic range of up to 135. Available from $3,950.
Specifications
Dimensions & Weight
- Size
- 13 x 10.9 x 3.9" / 330 x 278 x 100 mm (with Feet)
- Weight
- 11.2 lb / 5.1 kg
- Bit Depths
- 32-Bit
- Package Weight
- 12.15 lb
Power & Energy
- Power
- 0.7 W (Standby)40 VA (Maximum)
- Rail Voltage
- Analog:±60 V
- Sample Rates
- Coaxial S/PDIF:44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (PCM) Optical S/PDIF:44.1 / 48 / 88.2 / 96 kHz (PCM) USB-A Input:44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 / 705.6 / 768 kHz (PCM) 2.8 / 5.6 / 11.2 MHz (DSD) AES3:44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (PCM)
- Ac Input Power
- User Selectable:115 VAC, 60 Hz (T 1 A 250 V) 230 VAC, 50 Hz (T 500 mA 250 V)
- Damping Factor
- Outputs:180 at 40 Ohms (Balanced) 180 at 40 Ohms (Unbalanced)
- Headphone Output Power
- 1 W per Side into 600 Ohms (Max, 1 kHz)2 W per Side into 300 Ohms (Max, 1 kHz)3.7 W per Side into 120 Ohms (Max, 1 kHz)2.9 W per Side into 47 Ohms (Max, 1 kHz)2.7 W per Side into 32 Ohms (Max, 1 kHz)
