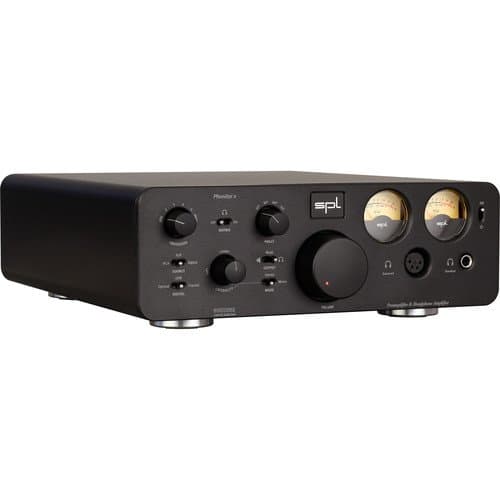

SPL Pro-Fi Series Phonitor x Headphone Amplifier & Preamplifier with DA Converter and VOLTAiR Technology (Black)

Name: SPL Pro-Fi Series Phonitor x Headphone Amplifier & Preamplifier with DA Converter and VOLTAiR Technology (Black)
Brand: SPL

SPL·Headphone Amplifiers

Retailer	Price	Availability
bhphoto	$3,750.00	In stock	Buy

About This Headphone Amplifiers

The SPL Pro-Fi Series Phonitor x is a high-fidelity headphone amplifier and preamplifier, featuring an integrated DA converter and SPL's proprietary VOLTAiR Technology. This versatile unit offers exceptional audio performance with a dynamic range of up to 136.3 dB and a remarkably low THD+N of 0.00085% for speaker/line outputs. Equipped with a USB-B input supporting sample rates up to 192 kHz, along with a comprehensive array of analog and digital audio I/O, the Phonitor x is designed to deliver pristine sound for both critical listening through headphones and as a central preamplifier in a high-end audio system.

What You Need to Know

Specifications

Dimensions & Weight

Size: 11 x 11.2 x 2.2" / 33.5 x 28 x 5.6 cm (with Feet)
Weight: 9.5 lb / 4.3 kg
Package Weight: 12.49 lb

Power & Energy

Power: 40 VA (Maximum)0.7 W (Standby)
Rail Voltage: Analog:±60 V Digital:±5 V ±3.3 V
Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Ac Input Power: User Selectable:115 VAC, 60 Hz (T 1 A 250 V) 230 VAC, 50 Hz (T 500 mA 250 V)
Damping Factor: Balanced Headphone Outputs:180 at 40 Ohms Headphone Outputs:180 at 40 Ohms
Headphone Output Power: 1 W per Side into 600 Ohms (Max, 1 kHz)2 W per Side into 300 Ohms (Max, 1 kHz)3.7 W per Side into 120 Ohms (Max, 1 kHz)2.9 W per Side into 47 Ohms (Max, 1 kHz)2.7 W per Side into 32 Ohms (Max, 1 kHz)

Frequently Asked Questions

Where can I buy the SPL Pro-Fi Series Phonitor x Headphone Amplifier & Preamplifier with DA Converter and VOLTAiR Technology (Black)?▼

The SPL Pro-Fi Series Phonitor x Headphone Amplifier & Preamplifier with DA Converter and VOLTAiR Technology (Black) is available at bhphoto, starting at $3,750.
